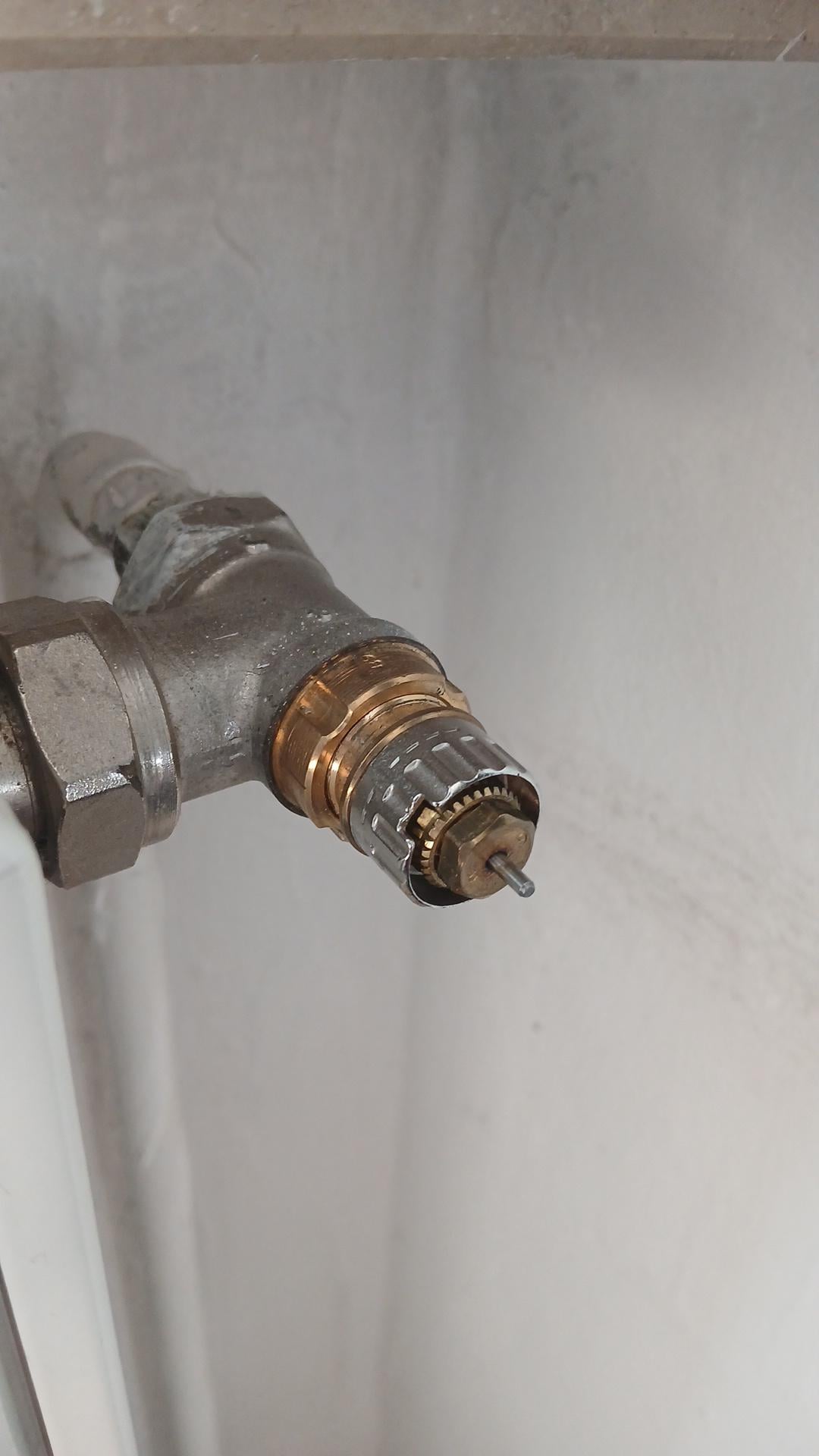

Hallo. Wie kann ich verstehen, ob dies richtig eingerichtet ist? Dies ist bei 5 (vollständig geöffnet). Es heizt nicht viel, ich frage mich, ob es davon abhängt. Danke für die Hilfe.
https://i.redd.it/kkmjn44n7mpe1.jpeg
Von humhummy
Hallo. Wie kann ich verstehen, ob dies richtig eingerichtet ist? Dies ist bei 5 (vollständig geöffnet). Es heizt nicht viel, ich frage mich, ob es davon abhängt. Danke für die Hilfe.
https://i.redd.it/kkmjn44n7mpe1.jpeg
Von humhummy
4 Kommentare
The valve is usually operated via a thermostat, which is obviously missing.
However, the pin should be moving, if you push it in, it should come out again by itself. If that is the case, and the heater doesnt get hot in a reasonable time, there could be something wrong with the rest of the system, such as low pressure, burner not working, pump not spinning.
If this not heats up, there is most likely air in the system. You can leave the air out on the other side with a special key. Search for Entlüftungsventil
If you turn the thermistor it allows the little metal pin to go out further, if you remove the thermistor its automatically on max flowrate threw the resitive valve
Have you checked for air in the radiator, usualy you have a little bleeding screw on the outgoing line somewhere, just prepare for the nastyest water known to man
Thanks for the comments. There is no air trapped and the pin moves, it’s not stuck. I would like to understand how it is set up right now. As a commented said, this is a Danfoss. Is it at the min/max/middle? My focus is really the silver ring, all the rest has been checked. Thank you
